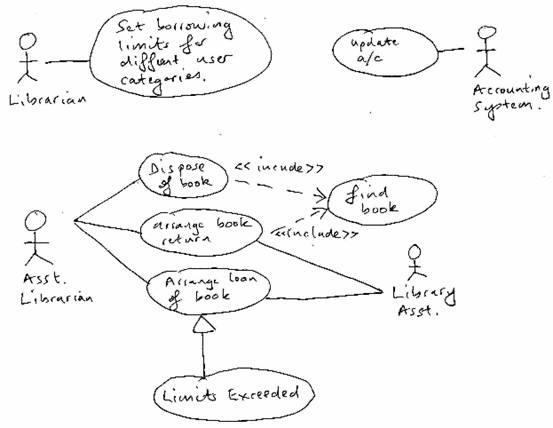

The test planner can extract scenarios from the use cases for test cases. Use cases are also very helpful for writing acceptance test cases. Use cases are developed during requirements elicitation and are further refined and corrected as they are reviewed (by stakeholders) during analysis. Use case diagrams are used during requirements elicitation and analysis as a graphical means of representing the functional requirements of the system.
A use case typically represents a major piece of (end-to-end) functionality that is complete from beginning to end. If the relationship between the diagram elements is one-to-one, then simply leave it blank.View and play PowerPoint presentations online.Ī use case, a concept invented by Ivar Jacobson at 1992, is a sequence of transactions performed by a system that yields an outwardly visible, measurable result of value for a particular actor.
It’s optional, but sometimes useful to add the standard UML notation for multiplicity: 1, 1.n, or *. You can also show inheritance on both actions and actors with the standard UML notation of a connector with an open arrowhead. In my example, you can Mark a habit as done, or Mark a habit as done AND add a comment in the same action. When one action is an extension of another action (or a more specific version of that action), use extend to show that relationship.So, the Update the habit history action is dependent on the other actions. But you wouldn’t update the habit history without one of the four actions: Add a habit, Delete a habit, Mark a habit as done or Add a comment.
For example when you Add a comment in the habit tracker app, you must Update the habit history.
